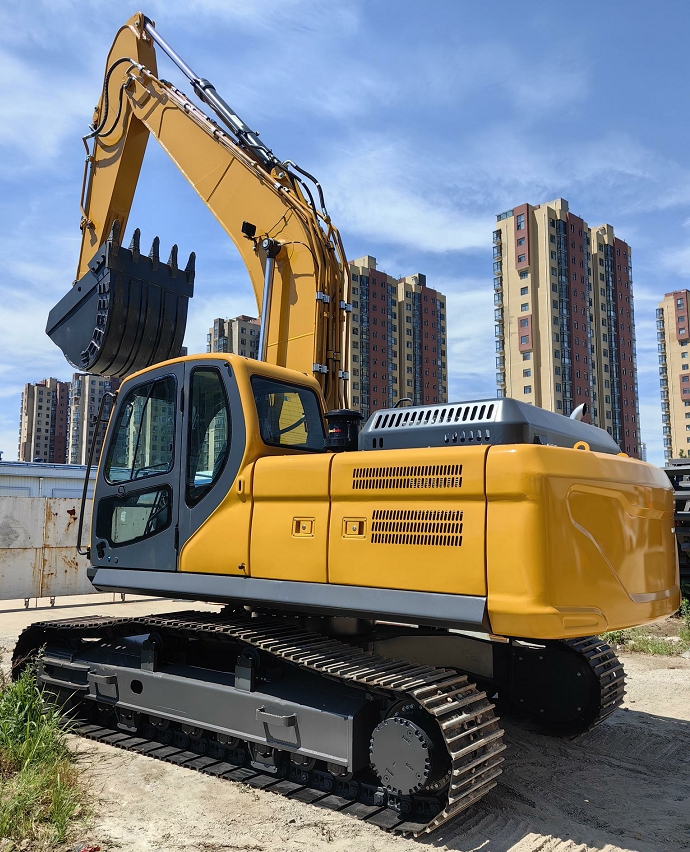

EXD3230 23.6T crawler excavator

Technical specification
Engine
Brand ISUZU
Model 4HK1
Cylinder number 4
Air intake  Turbocharged
Rated power/ speed 133kw/2000rpm
Emission standard
China three electric spray
Hydraulic system Main pump
(l/min)Max flow of main pum 2×211
Type of walking hydraulic motor
Axial plunger type× 2
Rotary hydraulic motor type
Axial plunger type× 1
Working hydraulic oil circuit
(standard)32.4/
(supercharger)34.3
（Mpa)Traveling hydraulic circuit 32.4
（Mpa)Rotary hydraulic circuit 27.5
(mm)Boom cylinder- pcs× diameter × stroke 2-120×85×1245
(mm)Bucket arm cylinderpcs×diameter × stroke1-135×95×1538
Bucket cylinderpcs×diameter × stroke1-120×80×1050
Overview
Place of origin Yantai CHINA
Total weight 23626
Bucket capacity 1.05m3
Oils capacity
(L)Fuel tank 350
(L) Hydraulic tank 240

(L) Engine oil change 20
(L)Heatsink 42
Performance
(rpm)Rotating speed 12.4
（km/h）Traveling speed 5.4/3.1
( Kpa) Ground specific voltage 46
（kN）Bucket digging force 136.3/144.1
（kN）Arm crowd force 97.1/102.9
